The machine_use tool

machine_use is one tool for everything an agent does on the machine desktop. It dispatches on two discriminators: an action enum (22 values) and a target that selects the surface — chromium (the CDP-attached browser, the default) or desktop (the full XFCE session driven through xdotool, maim, and ffmpeg). An optional uri picks the machine source (machine-user://, …); when omitted, the caller's first configured machine source is used.

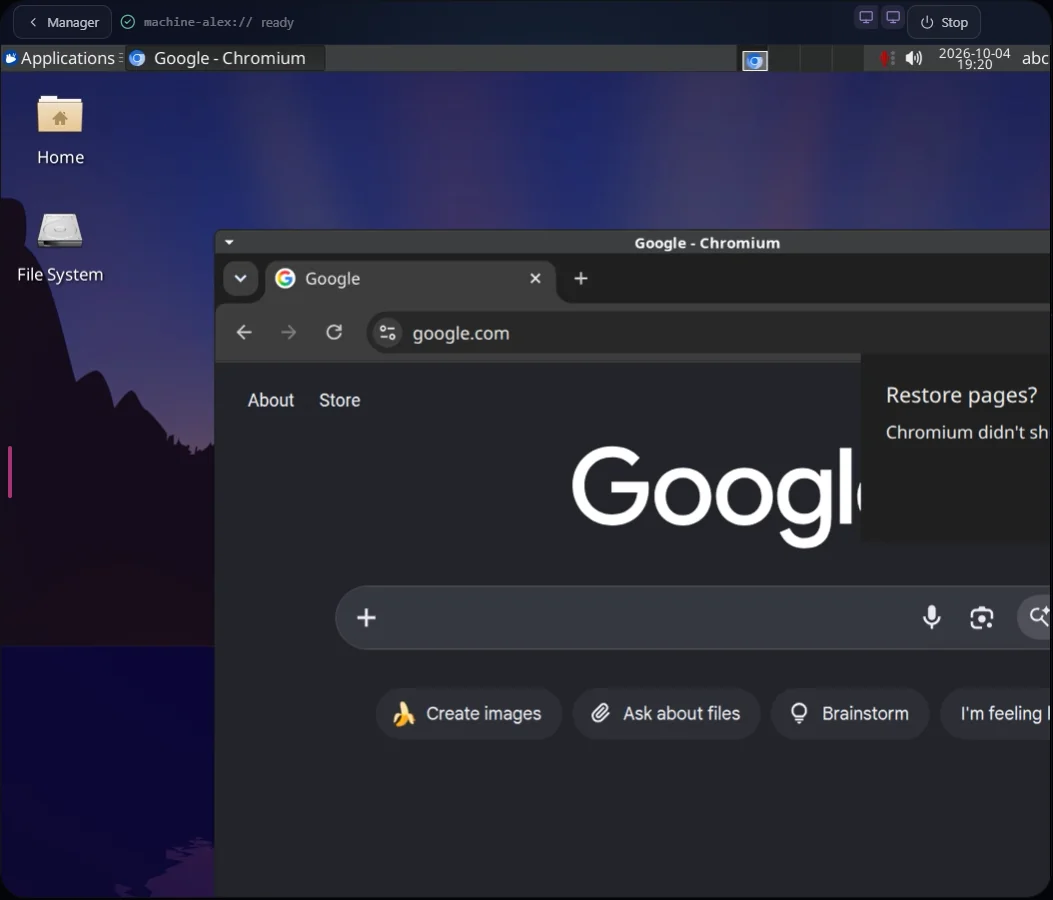

Machine in a configured installation, showing its desktop and browser within the complete application frame.

Action groupsCopy Anchor Link

Notable per-action behavior, verified surface:

• click resolves links deterministically. In Chromium mode, click first walks the DOM for the closest <a href>. If one is found the driver navigates via page.goto() and reports { navigated: true, href, url, httpStatus }; otherwise it falls back to a plain locator click with auto-wait for visibility. Successful results carry ok: true in their structured payload (the navigation HTTP status number is named httpStatus), and connector shell through execute reports ok: exitCode === 0 — the same convention the platform's own shell tool uses.
• key is atomic-combo only. Desktop key input accepts combo strings like "ctrl+c", "Return", "alt+F4". Decomposed keydown/keyup primitives are rejected by the tool handler and the in-container agent, so modifiers cannot be held across calls. A default denylist blocks session-hostage combos (ctrl+alt+del, the TTY switches ctrl+alt+f1 … ctrl+alt+f12, super+l, super+r, super+d, alt+f4, ctrl+alt+backspace, ctrl+alt+t, alt+sysrq). The list is enforced twice — once in the tool handler and again inside the machine — and the second check has no exception path today, so a blocked combo stays blocked regardless of configuration. Surface the block to the user rather than retrying an alternate spelling.
• screenshot is shape-aware per target. Chromium accepts selector (element-only), fullPage (entire scrollable page), or clip (pixel rectangle). Desktop accepts scale (downscale factor, default 0.75), region (post-capture crop), and quality (JPEG re-encode for smaller payloads).
• read_combined returns { text, dom, url } in a single round trip — use it instead of back-to-back read_text + read_dom.
• batch runs atomic action objects sequentially in one tool call — 25 steps under a 150-second budget by default, both adjustable by an admin (up to 50 steps and 300 seconds) — audit-logging each step. It aborts on the first failed step and reports per-step latency in structuredContent.steps[].durationMs.

RecordingCopy Anchor Link

record (desktop target) captures the screen for durationMs — capped at 30 seconds by default, adjustable by an admin up to 300 seconds — at a configurable fps (default 8) and format (webm default, mp4 available). The recording is always written to the machine's recordings directory and a data://machine-core/recordings/<filename> URI comes back; load it with fs_read when the content is needed — the platform then delivers it to the active model in the best form that model can ingest: native video where supported, up to 12 evenly-sampled frames on vision-capable models without video input, or an honest size marker. Recordings are retained for a configurable window (default 24 hours) and swept automatically after it.

Vision content blocksCopy Anchor Link

machine_use returns MCP content blocks directly; the platform's delivery layer translates them into each model's native shapes:

• { type: 'image', data, mimeType: 'image/png' | 'image/jpeg' } — emitted by screenshot on both targets.
• { type: 'text', text } — always present alongside an image block, so text-only models can still reason over the result. record returns text only (the URI).

Every dispatch is timed: structuredContent.timings.totalMs rides on every result.

Feature gating per actionCopy Anchor Link

machine_use declares machine.read as its baseline feature gate. The handler then escalates per input: read-class actions — screenshot, record, read_text, read_dom, read_a11y, read_combined, windows, cursor_position, wait_for_selector, wait_for_text — pass with machine.read; every other action requires machine.drive. A batch requires the worst-case feature across its steps: one drive-class child makes the whole batch a drive call. The split exists because the required feature depends on the action argument, so it cannot be expressed as a static declarative gate — see features and access for the underlying model.

Webtop shellCopy Anchor Link

Use agent-core's execute with the registered source URI. machine_use keeps its existing action and target contract; shell is not another machine action.

Webtop takes the caller's own env and runs background: true when the machine's desktop image supports them; a machine created from an older image refuses either by name and says to recreate it. It receives no platform session ticket, skill credentials or substitution environment. Stop ends the wait and, where the image supports cancellation, the command's whole process group — a grandchild that opened its own session survives, so inspect state before retrying. For a skill script, use the activation envelope's actual directory URI and a relative command.

It requires the exec.machine entry feature (owner and admin by default) and an exec grant on the working directory in the source's own path policy. The real boundary is the container sandbox plus that grant plus network isolation — not the command denylist. Two denylists exist, and they are not the same list: the tool handler refuses seven leading tokens (shutdown, reboot, halt, poweroff, ufw, iptables, nft) so the error text arrives in the caller's own context before the command leaves the host — a command stopped there is refused rather than executed, and is not written to the machine audit log — and the in-container agent re-checks a strict superset that also blocks nftables, mkfs, fdisk, mount, umount, ffmpeg and gst-launch-1.0. Both only inspect the leading command token and the agent runs the command through a shell, so they are cosmetic friction rather than a security control. Neither is removable by a role, a feature grant or a platform setting. Screen recording still goes through machine_use action=record so the duration and size caps apply. Command output is size-bounded; pipe large output to a file under /config/ and read it back with fs_read.

Commands run with a filtered environment. The in-container agent passes an allowlist (PATH, HOME, locale, DISPLAY, the XDG set) to everything it spawns, so the stream password and the agent's own bearer token are not inherited by Webtop shell commands or by the helper processes the agent runs on your behalf. This bounds accidental leakage; it is not a boundary against a exec.machine holder, who is root-equivalent inside the container and can read the agent's process environment directly.
